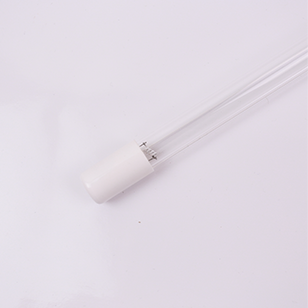

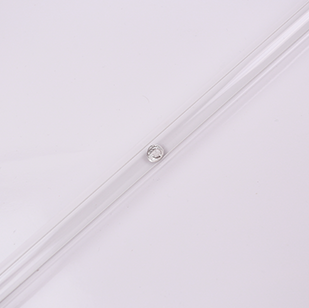

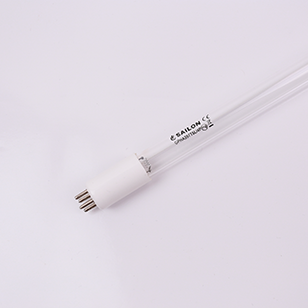

AMALGAM LONG LIFE GERMICIDAL UV LAMP
Product Introduction
Type Tub Diameter(MM) S(MM) Power(W) Voltage 50/60Hz Current(A) UV output at 254nm
uw/cm2  w
UV output at 254nm
uw/cm2  w
Standard life type
T5 DIAMETER
GPHA357T5L 15 357 42 36 1.2 110 11 13000
GPHA843T5L 15 843 105 88 1.2 320 35 13000
GPHA1000T5L 15 1000 127 107 1.2 370 42 13000
GPHA1145T5L 15 1145 150 130 1.2 395 54 13000
GPHA1554T5L 15 1554 190 164 1.2 500 68 13000
T6 DIAMETER
GPHA357T6L 19 257 57 32 1.8 130 13 13000
GPHA843T6L 19 843 130 71 1.8 400 43 13000
GPHA1000T6L 19 1000 150 84 1.8 460 52 13000
GPHA1145T6L 19 1145 180 102 1.8 550 65 13000
GPHA1554T6L 19 1554 240 134 1.8 600 84 13000
GPHHA357T6L 19 357 65 31 2.1 140 14 13000
GPHHA843T6L 19 843 172 82 2.1 490 54 13000
GPHHA1000T6L 19 1000 207 99 2.1 570 65 13000
GPHHA1145T6L 19 1145 240 115 2.1 600 84 13000
GPHHA1554T6L 19 1554 320 154 2.1 750 105 13000
T8 DIAMETER
GPHHA1510T8L 25 1510 250 83 3.1 650 90 13000
T10管径
GXA1500T10L 32 1500 270 75 3.8 650 93 13000
GPHA1515T10L 32 1515 270 75 3.8 650 93 13000
GPHHA1515T10L 32 1515 330 84 3.8 850 110 13000
GPHHA1310T10L 32 1210 400 82 5 1050 130 13000
GPHHA1554T10L 32 1554 500 90 5.5 1300 165 13000
T12 DIAMETER
GPHHA1790T12L 38 1790 800 100 8 2100 260 13000

Characteristics for Amalgam lamp

Sailon UV LIghting can be manufactured the Amalgam lamps with hong life and big power,and the UV output is three times

that of ordinary low pressure UV lamps.

1.Sailon's UV lamp still keep the 90% high UV output after runing 10000hrs,owing to special protective coating applied to

the inner wall of the lamp.So Sailon UV Light always keep stability sterilization

2.The long life of Sailon's UVC light can be reach 13000hrs.

3.Making with special Amalgam technology will keep stability UV output in a wide range of temperature,can be used for the

envirenment is more than 90℃.

4.It's very helpful in the equipments where has a limit places to install,because we can make the power more larger.

5.Sailon UVC lighting proviced the Amalgam UV lamp with 254nm and (254nm,185nm).254nm and 185nm can be produced

the OZONE.


Aplication For 254nm UV lamp

1.Disinfection of swiming pool

2.Wast water treatment system

3.Drinking water treatment system

4.Swiming pool and SPA treatment

5.Air conditioning pipe and vanitation pipe disinfection


Aplication For 254nm and 185nm UV lamp

1.Kitchen fume removel

2.Air conditioning pipe and vanitation pipe disinfection

3.Reduce the application of total organic compounds(TOC),Light cleaning

4.Swiming pool and SPA treatment

5.Ultrapure water treatment system(semiconductor,medicine,cosmetic)
